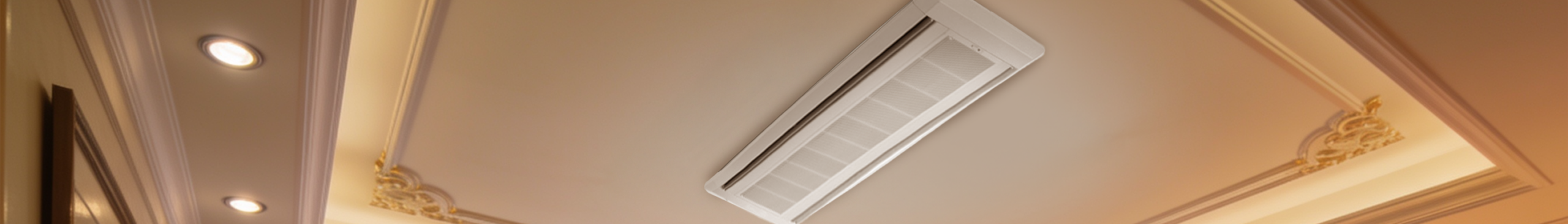

TMV 2-Way Cassette

Cassette TypeTMV 2-Way Cassette

🏠 Residential AC 🏢 Commercial AC

The TMV 2-Way Cassette Indoor Unit delivers efficient, quiet cooling in a compact design, with two-way airflow and easy installation for modern spaces.

Model: TMV-NDTS/B-T

Series: TMV INDOOR | CASSETTE

Key Features

  • Two-way Air Supply
  • Standard Fitting 1,200mm Condensate Water Lift Pump
  • New Streamlined Appearance Design
  • Quiet Fan Blade Design, Low Noise Operation
  • Independent Swing Control
  • Compact Body Design
  • Automatic Louver Control
Available Variants
Specifications
TMV-ND28TS/B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 33/31/28
Drain Pipe inch 1'
Net Weight / Gross Weight kg 25.5/33
Power Input W 20
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 1.0 HP
Air Flow (CMH) m³/h 671/616/513
Ref. Pipe Size inch 1/4"; 3/8"
Dimensions | IDU (WxDxH) mm 790x630x280
Rated Current A 0.3
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND36TS/B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 33/31/28
Drain Pipe inch 1'
Net Weight / Gross Weight kg 25.5/33
Power Input W 20
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 1.3 HP
Air Flow (CMH) m³/h 671/616/513
Ref. Pipe Size inch 1/4"; 1/2"
Dimensions | IDU (WxDxH) mm 790x630x280
Rated Current A 0.3
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND45TS/B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 35/31/28
Drain Pipe inch 1'
Net Weight / Gross Weight kg 25.5/33
Power Input W 30
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 1.6 HP
Air Flow (CMH) m³/h 715/616/513
Ref. Pipe Size inch 1/4"; 1/2"
Dimensions | IDU (WxDxH) mm 790x630x280
Rated Current A 0.3
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND50TS/B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 35/31/28
Drain Pipe inch 1'
Net Weight / Gross Weight kg 25.5/33
Power Input (W) W 30
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 1.8 HP
Air Flow (CMH) m³/h 715/616/513
Ref. Pipe Size inch 1/4"; 1/2"
Dimensions | IDU (WxDxH) mm 790x630x280
Rated Current A 0.3
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND56TS/B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 31/34/32
Drain Pipe inch 1'
Net Weight / Gross Weight kg 25.5/33.5
Power Input W 30
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 2.0 HP
Air Flow (CMH) m³/h 764/709/676
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 790x630x280
Rated Current A 0.3
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND63TS/B-T Unit Value
DESCRIPTIONS UNIT VALUES
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 31/34/32
Drain Pipe inch 1'
Net Weight / Gross Weight kg 25.5/33.5
Power Input W 30
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 2.3 HP
Air Flow (CMH) m³/h 764/709/676
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 790x630x280
Rated Current A 0.3
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND71TS/B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 39/37/34
Drain Pipe inch 1'
Net Weight / Gross Weight kg 25.5/33.5
Power Input W 55
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 2.5 HP
Air Flow (CMH) m³/h 816/745/660
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 790x630x280
Rated Current A 0.5
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND80TS/B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 39/37/34
Drain Pipe inch 1'
Net Weight / Gross Weight kg 25.5/33.5
Power Input (W) W 55
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 2.9 HP
Air Flow (CMH) m³/h 816/745/660
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 790x630x280
Rated Current A 0.5
Power Supply Wire Size AWG AWG #12 X 2
