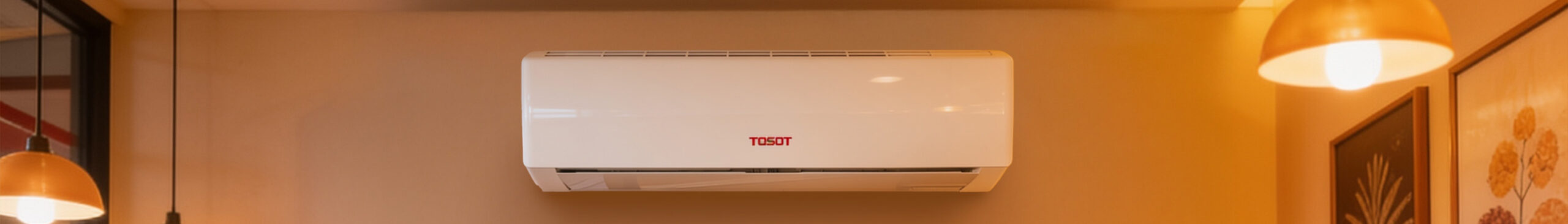

TMV – Wall Mounted

Wall MountedTMV – Wall Mounted

🏠 Residential AC

A compact, efficient cooling with quiet performance, wide airflow, and easy installation for reliable everyday comfort.

Model: TMV-NDG/B4B-T

Series: TMV INDOOR | WALL MOUNTED

Key Features

  • Easy Installation
  • Uniform Temperature Distribution and High Level of Comfort
  • Automatic Up and Down Swing Design
  • Washable Filter
  • Removable Panel
  • Wide Air Supply
  • Powerful and Fast
  • Quiet Design
  • Multiple Protection Functions
Available Variants
Specifications
TMV-ND22G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 35/33/30
Drain Pipe inch 1'
Net Weight / Gross Weight kg 10.5/12.5
Power Input W 20
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 0.8 HP
Air Flow (CMH) m³/h 500/440/300
Ref. Pipe Size inch 1/4"; 3/8"
Dimensions | IDU (WxDxH) mm 845x209x289
Rated Current A 0.1
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND28G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 35/33/30
Drain Pipe inch 1'
Net Weight / Gross Weight kg 10.5/12.5
Power Input W 20
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 1.0 HP
Air Flow (CMH) m³/h 500/440/300
Ref. Pipe Size inch 1/4"; 3/8"
Dimensions | IDU (WxDxH) mm 845x209x289
Rated Current A 0.1
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND36G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 38/35/31
Drain Pipe inch 1'
Net Weight / Gross Weight kg 10.5/12.5
Power Input W 25
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 1.3 HP
Air Flow (CMH) m³/h 630/460/320
Ref. Pipe Size inch 1/4"; 1/2"
Dimensions | IDU (WxDxH) mm 845x209x289
Rated Current A 0.1
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND45G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 43/40/37
Drain Pipe inch 1'
Net Weight / Gross Weight kg 12.5/15.5
Power Input W 35
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 1.6 HP
Air Flow (CMH) m³/h 850/580/500
Ref. Pipe Size inch 1/4"; 1/2"
Dimensions | IDU (WxDxH) mm 970x224x300
Rated Current A 0.2
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND50G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 43/40/37
Drain Pipe inch 1'
Net Weight / Gross Weight kg 12.5/15.5
Power Input W 35
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 1.8 HP
Air Flow (CMH) m³/h 850/580/500
Ref. Pipe Size inch 1/4"; 1/2"
Dimensions | IDU (WxDxH) mm 970x224x300
Rated Current A 0.2
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND56G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 43/41/37
Drain Pipe inch 1'
Net Weight / Gross Weight kg 16/19
Power Input W 50
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 2.0 HP
Air Flow (CMH) m³/h 1,100/850/650
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 1,078x246x325
Rated Current A 0.2
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND63G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 43/41/37
Drain Pipe inch 1'
Net Weight / Gross Weight kg 16/19
Power Input W 50
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 2.3 HP
Air Flow (CMH) m³/h 1,100/850/650
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 1,078x246x325
Rated Current A 0.2
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND71G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 44/41/37
Drain Pipe inch 1'
Net Weight / Gross Weight kg 16/19
Power Input W 65
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 2.5 HP
Air Flow (CMH) m³/h 1,200/850/650
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 1,078x246x325
Rated Current A 0.3
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND80G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 49/46/40
Drain Pipe inch 1'
Net Weight / Gross Weight kg 20/24
Power Input W 80
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 3.0 HP
Air Flow (CMH) m³/h 1,550/1,050/800
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 1,350x258x326
Rated Current A 0.4
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND90G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 49/46/40
Drain Pipe inch 1'
Net Weight / Gross Weight kg 20/24
Power Input W 80
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 3.2 HP
Air Flow (CMH) m³/h 1,550/1,050/800
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 1,350x258x326
Rated Current A 0.4
Power Supply Wire Size AWG AWG #12 X 2
Specifications
TMV-ND100G/B4B-T Unit Value
Power Supply V/Ph/Hz 220v/1ph/60hz
Sound Pressure Level dB(A) 52/48/40
Drain Pipe inch 1'
Net Weight / Gross Weight kg 20/24
Power Input W 100
Breaker Size A 6A
Communication Wire Qty. AWG AWG #18 X 2
Capacity HP 3.6 HP
Air Flow (CMH) m³/h 1,650/1,100/900
Ref. Pipe Size inch 3/8"; 5/8"
Dimensions | IDU (WxDxH) mm 1,350x258x326
Rated Current A 0.4
Power Supply Wire Size AWG AWG #12 X 2
